Aluminum Bottle Cap
Aluminium bottle caps are widely used as sealing components in various packaging fields, offering excellent sealing performance, light weight, corrosion resistance, and ease of processing and decoration. Depending on the application, material, processing methods, and surface treatment techniques, aluminium bottle caps are commonly used in the fields of alcoholic beverages, food, drinks, cosmetics, pharmaceuticals, and industrial applications.
Why is Aluminium used for Bottle Caps?
Aluminium bottle caps are the ideal choice for packaging in food, beverages, alcoholic drinks, and pharmaceuticals due to their light weight, corrosion resistance, good sealing properties, recyclability, and customizability.
| Property | Description | Benefit for Bottle Caps |
| Lightweight and Durable | Aluminium is light but strong, making it easy to transport and handle while ensuring durability. | Reduces shipping costs and ensures caps remain intact during use. |
| Corrosion Resistance | Naturally forms a protective oxide layer, making it resistant to moisture and acidic contents. | Maintains the integrity of the seal and protects contents from contamination. |
| Excellent Barrier Properties | Provides a strong barrier against light, air, and moisture. | Preserves product freshness and prevents oxidation or spoilage. |
| Malleability | Easily shaped into various designs without compromising strength. | Enables production of different cap types like screw caps, ROPP caps, and flip-top caps. |
| Non-Toxic and Safe | Safe for direct contact with food and beverages. | Ensures safety and compliance for food, beverage, and pharmaceutical products. |
| Recyclability and Sustainability | 100% recyclable without loss of quality, promoting eco-friendliness. | Supports sustainable packaging and reduces environmental impact. |
| Customizability | Can be printed, colored, or embossed for branding purposes. | Enhances product appearance and helps in marketing. |
| Cost-Effective | Abundant and inexpensive to process. | Lowers production costs, especially for high-volume manufacturing. |
| Enhanced Sealing and Security | Can incorporate tamper-evident features. | Increases consumer trust by providing visible security measures. |
Aluminum Bottle Cap Specifications
| Specification | Description |
| Aluminum Bottle Cap Material | 1060, 1050, 1070, 3004, 3104, 3105, 5052, 5182, 8011 |
| Aluminum Bottle Cap Types | Screw Cap, ROPP Cap (Roll-On Pilfer Proof Cap), EOE Cap (Easy-Open End), Press Cap, Foil Lid |
| Surface Treatment | Color Coating, DOS Lubrication Treatment, Chrome Plating, Epoxy Coating |
| Liner Types | PE Liner, EVA Liner, Foil Liner, Plastic Particles Extruded Liner, SBR Liner, Silicone Liner, PVC Liner, Foam Liner, Paper-based Composite Liner, PVDC Coated Liner |
| Liner Features | Good sealing performance, chemical resistance, flexibility, adaptable to different temperature needs |
| Printing Process | Printing: Side Printing, Silk Screen Printing |
| Hot Stamping/Hot Foil: Top Hot Stamping, Side Hot Stamping, Positioning Hot Stamping | |
| Embossing: 3D Logo or Text Effects | |
| Features | Lightweight, Good sealing, Corrosion resistance, Environmentally friendly, Easy to process |
| Application Areas | Food: Yogurt Lids, Milk Powder Lids, Canned Lids |
| Beverages: Beer Bottle Caps, Beverage Bottle Caps | |
| Cosmetics: Perfume Bottle Caps, Cream Jar Caps | |
| Pharmaceuticals: Medicine Bottle Caps, Aluminium Foil Seals | |
| Processing Techniques | Stamping |
| Roll Forming | |
| Spraying and Printing | |
| Anodizing | |
| Advantages | Complies with food safety standards |
| Recyclable | |
| Excellent brand presentation effect |
Main Materials of Aluminum Bottle Caps
Common aluminum alloy grades include:
1060, 1050, 1070 (Pure Aluminum)
Mainly composed of pure aluminum, offering good ductility and corrosion resistance, suitable for bottle caps requiring good formability.
Applications: Cosmetics caps, wine bottle caps, food caps, etc.
3004, 3104, 3105 (Aluminum-Manganese Alloy)
Provides excellent oxidation resistance and rust resistance, with higher strength than pure aluminum.
Applications: Beverage bottle caps, canned food caps, yogurt caps, etc.
5052, 5182 (Aluminum-Magnesium Alloy)
Known for its high strength and excellent corrosion resistance, especially suitable for high-demand sealing components.
Applications: Beer bottle caps, screw caps, beverage can caps, etc.
8011 (Aluminum Foil Alloy)
Designed specifically for aluminum foil, offering good ductility and formability, suitable for making caps with complex shapes.
Applications: Medicine bottle caps, milk powder caps, aluminum foil liners, etc.
Types of Aluminum Bottle Caps
| Cap Type | Description | Suitable Products |
| Screw Cap | Screw caps are widely used in alcohol, beverages, and cosmetics packaging. They offer convenient re-opening features, allowing consumers to easily open and reseal, ensuring the product stays fresh. | Alcohol, beverages, cosmetics, etc. |
| ROPP Cap (Roll-On Pilfer Proof Cap) | ROPP caps are commonly used for wine and spirits bottles. They utilize a unique rolling process that ensures a tight fit between the cap and the bottle neck, providing excellent tamper-proof and anti-counterfeit features, effectively ensuring the safety of bottled products. | Wine and spirits bottles |
| EOE Cap (Easy-Open End) | EOE caps are mainly used for food and beverage cans. They are designed for convenience and easy opening, offering a convenient user experience, especially for packaging that requires single-use opening. | Food cans and beverage cans |
| Press Cap | Press caps are typically used for cosmetics and pharmaceutical packaging. They provide strong sealing, effectively preventing leakage or contamination, ensuring product quality and extending shelf life. | Cosmetics and pharmaceuticals |
| Foil Lid | Foil lids are suitable for dairy products, yogurt, and milk powder cans. Their excellent sealing properties protect the contents from contamination or oxidation, ensuring the freshness and safety of the products. | Dairy products, yogurt, milk powder cans |
Surface Treatment of Aluminum Bottle Caps
| Surface Treatment Type | Description |
| Color Coating | Color coating treatment offers a variety of colors and patterns, significantly enhancing the appearance of aluminum bottle caps and brand recognition, making the product more attractive to consumers and helping the brand stand out in the market. |
| DOS Oil Lubrication Treatment | DOS oil lubrication treatment involves applying lubricant oil to the surface of the bottle cap to reduce friction during the manufacturing process, significantly improving the processing efficiency and production speed of aluminum bottle caps, while ensuring a smooth surface to prevent damage. |
| Chrome Plating Treatment | Chrome plating treatment enhances the corrosion resistance of aluminum bottle caps and improves their decorative effect, enhancing the product’s appearance quality. It is suitable for high-end product packaging and ensures the stability of bottle caps during long-term use. |
| Epoxy Coating | Epoxy coating increases the wear resistance and chemical stability of aluminum bottle caps, allowing them to maintain good performance in harsh environments. It is particularly suitable for high-demand chemical or food packaging. |
Features of Aluminum Bottle Caps
- Lightweight: Lightweight, easy to transport and use.
- Good Sealability: Ensures that liquids or gases inside the bottle do not leak, extending the product's shelf life.
- Corrosion Resistance: Effectively resists oxidation and chemical corrosion.
- Environmentally Friendly: Recyclable, in line with sustainable development concepts.
- Strong Processability: Easy to stamp, stretch, and form, suitable for various complex structures.
Applications of Aluminum Bottle Caps
| Application Field | Applicable Products | Description |
| Alcohol Industry | Wine Bottle Caps | Aluminum bottle caps are used for alcoholic bottled products, providing good sealability to ensure the quality preservation of alcoholic beverages. They are widely used in wine, spirits, and other alcohol packaging. |
| Food Industry | Yogurt Caps, Milk Powder Caps, Canned Food Caps | Aluminum bottle caps are widely used in the food industry, providing good sealability to protect the freshness and quality of food. They are commonly found on yogurt, milk powder, and canned food packaging. |
| Beverage Industry | Beer Bottle Caps, Beverage Bottle Caps | In the beverage industry, aluminum bottle caps are used for beer and beverage bottles, ensuring product sealability and ease of opening for consumer convenience. |
| Cosmetics Industry | Perfume Bottle Caps, Cream Jar Caps | Aluminum bottle caps provide a premium appearance and excellent sealing effect in cosmetics packaging, commonly used for perfume bottles and cream jars to protect the contents. |
| Pharmaceutical Industry | Medicine Bottle Caps, Aluminum Foil Seals | In the pharmaceutical industry, aluminum bottle caps are used for medicine packaging, featuring tamper-evident and moisture-resistant functions to ensure the safety and stability of the drugs. |
| Industrial Sector | Lubricating Oil Caps, Chemical Product Bottle Caps | Aluminum bottle caps are used in the industrial sector for lubricating oil and chemical product packaging, offering good chemical corrosion resistance and ensuring product safety during transport and storage. |
Which Liner Should Be Chosen for Aluminum Caps?
The cap liner is an important component of the bottle cap, used for sealing. It directly affects the sealing performance, product preservation, and packaging safety. The selection of the appropriate liner material should be considered based on the product characteristics, application scenarios, and sealing requirements.
Common liners include PE liners, sandpaper liners, tin foil liners (imported, expensive), plastic particle extrusion molded liners, etc. The appropriate bottle cap liner should be selected based on the specific needs of the customer.
| Liner Type | Features | Applicable Scenarios |
| PE Liner (Polyethylene) | Excellent flexibility and sealing ability | Sealing applications in food, beverages, cosmetics, etc. |
| Good chemical resistance | ||
| Odorless | ||
| Sandpaper Liner | Excellent wear resistance | Packaging bottle caps for industrial chemicals, lubricants |
| Strong sealing ability | ||
| Tin Foil Liner | High-strength sealing | Sealing for high-end food, pharmaceuticals, and specialty chemicals |
| Excellent oxidation and moisture resistance | ||
| Higher cost | ||
| Plastic Particle Extrusion Molded Liner | Customizable according to shape and thickness requirements | Various scenarios, selected according to customer-specific needs |
| Moderate cost | ||
| Stable sealing performance | ||
| EVA Liner (Ethylene-Vinyl Acetate Copolymer) | Good softness | Caps with high sealing requirements for cosmetics, pharmaceuticals |
| Strong resistance to compression deformation | ||
| Non-toxic, environmentally friendly | ||
| SBR Liner (Styrene-Butadiene Rubber) | Excellent wear resistance and elasticity | Industrial oils, low-seal requirement chemical caps |
| Weak resistance to acid, alkali, and oil | ||
| Silicone Liner | High-temperature and chemical resistance | High-end sealing scenarios in pharmaceuticals, food, and beverages |
| Non-toxic and tasteless | ||
| Excellent flexibility and sealing ability | ||
| Aluminum Foil Liner | Excellent moisture and oxidation resistance | Sealing for milk powder cans, pharmaceutical bottles, food cans |
| Suitable for induction heat sealing | ||
| PVC Liner (Polyvinyl Chloride) | Low cost | Mid- to low-end caps for beverages, food industry |
| Easy to process | ||
| Moderate flexibility | ||
| Foam Liner | Lightweight, easy to compress | Carbonated beverages, bottled water caps |
| Provides some rebound elasticity | ||
| Paper-based Composite Liner | Made from paper-based and polymer composites, has moisture and oil resistance | Low-cost sealing applications in the food industry |
| PVDC Coated Liner | High barrier properties | Pharmaceutical, cosmetic, and high shelf-life food packaging |
| Resistance to oxidation and moisture |
Key Factors in Gasket Selection
Product Type
- Liquid: For products like beverages and alcoholic drinks, select gaskets with strong liquid permeability resistance, such as PE gaskets or silicone gaskets.
- Powder: For products like milk powder and coffee, aluminum foil gaskets or paper-based composite gaskets are recommended.
Sealing Requirements
- High sealing performance: It is advisable to choose silicone gaskets or PVDC-coated gaskets.
- Ordinary sealing: Foam gaskets or PVC gaskets are suitable.
Chemical Compatibility
For products sensitive to chemical properties, such as pharmaceuticals, select gaskets with good chemical corrosion resistance, such as silicone or PE gaskets.
Temperature Requirements
For high-temperature sterilization or freezing environments, choose gaskets with good high-temperature resistance, such as silicone gaskets.

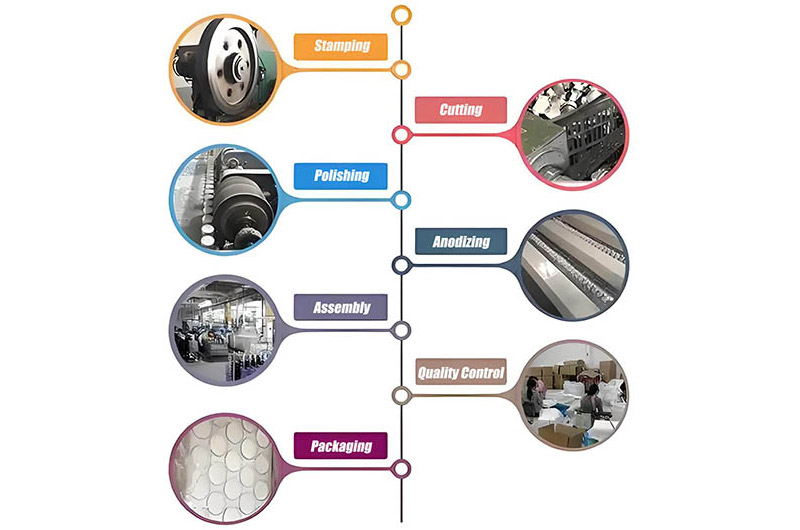

Aluminum Bottle Cap Manufacturing Process
Stamping
Aluminum sheets are stamped into the shape of bottle caps using molds.
Roll Forming
Aluminum sheets are precisely shaped through roll forming.
Spraying and Printing
The surface is sprayed, printed with patterns, or gold foiled to enhance aesthetics.
Anodizing
This process enhances the hardness and anti-oxidation properties of the bottle cap, while also offering a wide range of color options.
| Process | Description | Applicable Range |
| Printing | Printing patterns, text, or brand logos on the surface of the bottle cap to improve the appearance and brand recognition. It can be divided into the following two types: | Suitable for bottle caps in food, beverage, cosmetics, and pharmaceutical industries. |
| Side Printing | Printing on the side of the bottle cap | Beverage bottle caps, beer bottle caps |
| Typically used for narrow space markings, such as production dates, barcodes | ||
| Silk Screen Printing | Transferring ink to the surface of the bottle cap through a silk screen | High-end liquor, cosmetics bottle caps |
| Suitable for single-color or multi-color printing, with strong three-dimensional effect in patterns | ||
| Hot Stamping/Gold Stamping | Using heated metal molds to stamp metallic foil onto the surface of the bottle cap, creating a gold or silver effect. This can be divided into the following three types: | Packaging for high-end products, such as liquor, perfume bottle caps |
| Top Stamping | Gold or silver stamping on the top of the bottle cap | Liquor, cosmetics bottle caps |
| Suitable for brand logos or decorative patterns | ||
| Side Stamping | Gold or silver stamping on the side of the bottle cap | High-end beverage bottle caps |
| Highlights brand name or special markings | ||
| Positioning Stamping | Precise gold or silver stamping in specific areas of the bottle cap | Premium liquor, customized gift packaging |
| High precision, suitable for complex patterns | ||
| Raised Pattern | Using molds to raise specific areas of the bottle cap, forming three-dimensional patterns, text, or logos to enhance visual and tactile effects. | Cosmetics, high-end food and beverage bottle caps |
Characteristics and Advantages of Different Processes
Printing (Side Printing, Silk Screen Printing)
Can achieve multiple colors and complex patterns.
Enhances brand presentation, suitable for mass production.
Hot Stamping/Gold Stamping
High-end, with strong metallic gloss, increasing the product's appeal.
Strong wear resistance, suitable for the high-end market.
Raised Pattern
Unique three-dimensional effect, prominent tactile feel.
Suitable for emphasizing brand logos or core product information.
Aluminum bottle caps, due to their excellent performance and wide range of applications, have become an important component in the modern packaging industry. Different alloys and processing methods enable them to meet the needs of various fields, ensuring both sealing performance and efficient production while maintaining environmental sustainability.
